Now available in Standard Width for Stingrays and Wide Body Width for Callaway Wide Body Corvettes and Z06s.
Callaway Forged Nine-Spoke C8 Corvette Stingray Wheels 2020-2023
Online Store – Click to Order

Standard Width

Wide Body

Strong. Light. Sophisticated.

A true, fully-forged wheel in a refreshed nine-spoke design to complement the C8’s styling and is engineered to improve performance by removing over 26 lbs (12 kg) of rotational mass compared to the original equipment. Callaway Forged Nine-Spoke C8 Corvette Stingray Wheels 2020-2023

The forged aluminum construction offers greater strength at significantly less mass, offering peace-of-mind against typical cast-wheel construction being prone to damage over poor road surfaces. The material properties of the forged alloy allow mass optimization in the design process by way of FEM (Finite Element Modeling) which results in a wheel set 23% lighter than the OE cast wheels. (19% front, 26% rear), despite their increased width, which is 0.5” over original. Offset is slightly reduced for a flush appearance and increased track width.

Reducing unsprung mass and rotational inertia offers many vehicle performance benefits as less energy is required to accelerate, change direction, and decelerate the wheels. The suspension performance is also improved as it has less work to do to maintain tire contact patch to the road surface. This means that driver inputs are more efficiently communicated to the tires: acceleration, steering inputs and braking. They utilize the same Michelin Pilot Sport 4S (ZP) or all-season OE tire fitments and compounds developed for the C8.

Callaway designers have always preferred odd-numbered spoke designs to convey a proper visual and mechanical balance; while thin spokes promote brake-cooling airflow, and are easy to clean. A variety of finishes are offered: satin black painted, gloss titanium painted, matte bronze painted, as well as two premium finishes: Black Chrome PVD and Ceramic Polished: a machine-automated polishing that is protected by a clear-coating which does not detract from the brilliance of the polished alloy. All finishes carry a 3-year warranty.

Carbon fiber center caps and lug nuts are included with each wheel. Select either bright chrome or black chrome PVD lug nuts when ordering. Optional wheel lock sets are also available in bright chrome or black chrome PVD.

These new wheels have passed performance testing per TÜV and ISO standards for fatigue bending, impact and rolling performance with exceptional results.

Attractive, durable finishes

Black Chrome PVD

---

---

*compared to OEM C8 19”/20” Five-Spoke Painted Aluminum Wheels
†compared to OEM C8Z 20”/21” Spider-Design Titanium Satin Forged Aluminum Wheels

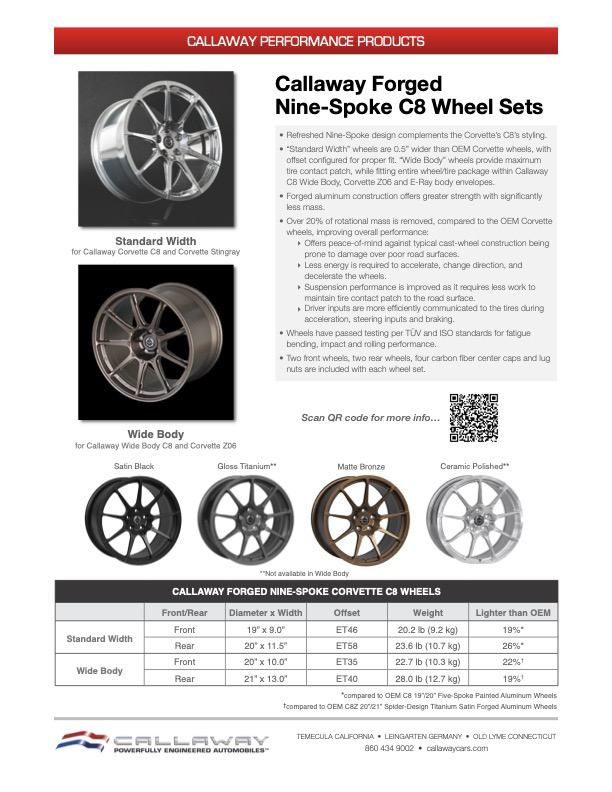

Photo Gallery Click images for larger view.

Callaway Forged Nine-Spoke C8 Corvette Stingray Wheels 2020-2023
